Audi 8Y Gauge (2020+)

P3 V3 OBD2 - Audi 8Y Gauge (2020+)
$399.00
SKU:3P3A8YX

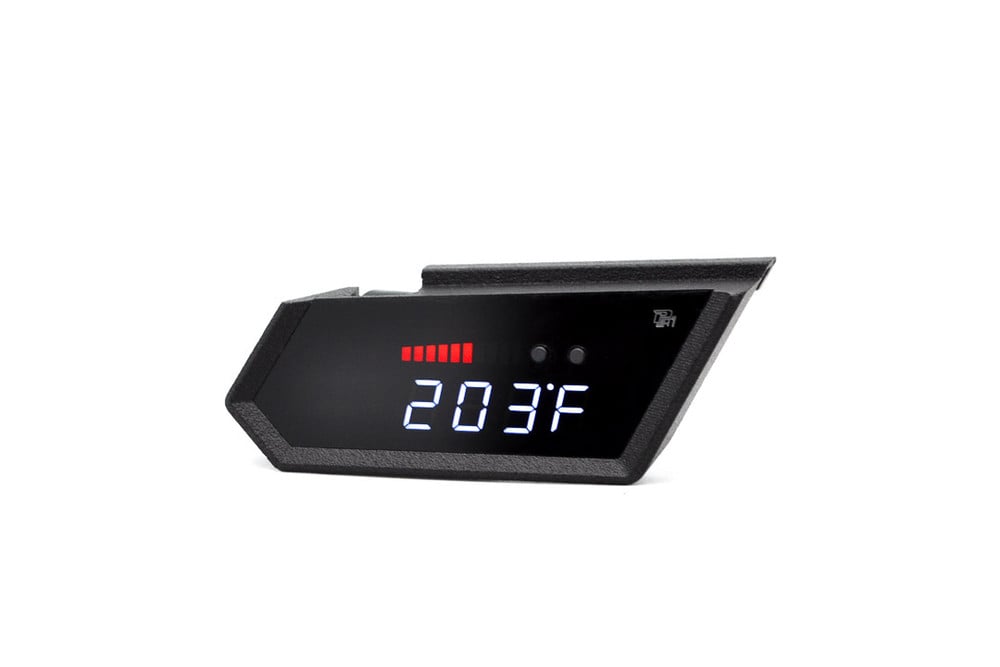

P3 V3 OBD2 and Analog Gauge products for select Audi models. Multi-Function digital vent gauge displays critical vehicle metrics like coolant temp, intake air temp, ignition timing, speed, RPM with shift light, and battery voltage - as well as peak recall in all modes.

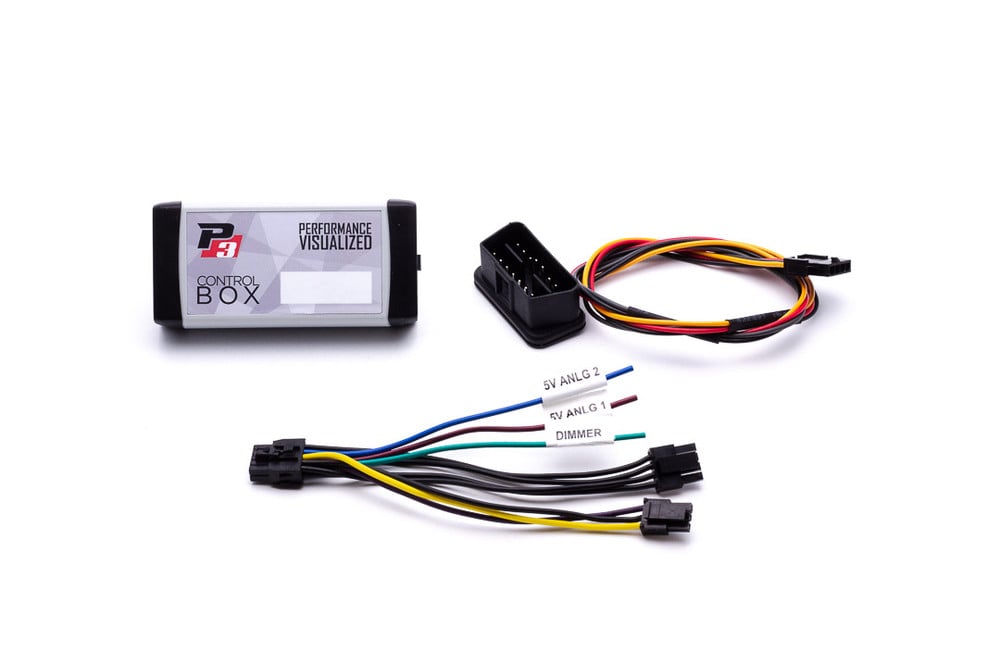

The P3 Analog Gauge *This gauge IS NOT plug and play. Boost/vacuum hose to the engine is required and wiring needs to be completed for power, ground, and optional analog inputs.

P3 V3 Gauge Features
Plug and Play Install - plugs directly into your OBD2 port (want to keep your OBD2 port open? hard-wire harness kit also available)
OEM Integration - installs on top of your vent for a sleek install while retaining air flow
Versatility - read boost from multiple OEM sensors through OBD2 port or using optional P3 analog boost sensor
Code Reading/Clearing - read and clear diagnostic trouble codes (DTCs) on the fly
P3 V3 Gauge Readouts (all readouts can be individually configured to read in either Imperial or Metric units)
Boost (through OBD2 port using OEM sensors or with P3 analog boost sensor)
Coolant temperature
Air/Fuel ratio (can be read in AFR or Lambda)
Vehicle speed (can be calibrated in 1% increments from -9% to +20%)
Intake air temperature
Throttle angle
Ignition timing
Engine RPM
Exhaust gas temperature
Battery voltage
Programmable shift light
Analog input 1 (brown wire) can allow gauge to read any 0-5 volt linear output sensor
Analog input 2 (blue wire) can allow gauge to read any 0-5 volt linear output sensor
Acceleration timers (0-60mph/0-100mph/60-130mph)
Braking timers (60-0mph/100-0mph)
